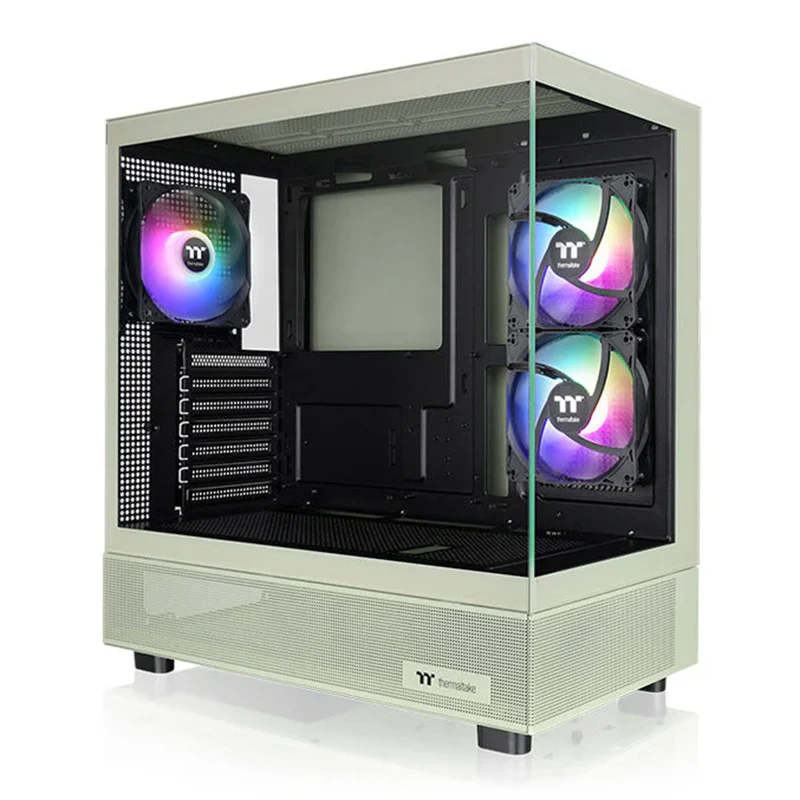

Thermaltake View 270 Plus TG ARGB Mid Tower E-ATX Case - Matcha Green (CA-1Y7-00MEWN-01)

Case Type

Mid Tower

Dimensions

456 x 230 x 454 mm

(18 x 9.1 x 17.9 inch)

Weight

6.35 kg / 14 lbs.

Side Panel

Tempered Glass x 2

Color

Matcha Green

Material

SPCC

Cooling System

Right(intake):

120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2

Rear(exhaust):

120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1

Drive Bays

2 x 3.5 €, 1 x 2.5 € or 2 x 2.5 €

Expansion Slots

7

Motherboard

6.7 € x 6.7 € (Mini ITX), 9.6 € x 9.6 € (Micro ATX),

12 € x 9.6 € (ATX), 12 € x 13 € (E-ATX)

I/O Port

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

Fan Support

Top:

3 x 120mm, 2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Right (M/B Side):

2 x 120mm, 1 x 120mm

Rear:

1 x 120mm, 1 x 140mm

Power Cover:

3 x 120mm, 2 x 120mm, 1 x 120mm

Radiator Support

Top:

1 x 360mm, 1 x 240mm, 1 x 120mm

Rear:

1 x 120mm

Clearance

CPU cooler max height: 180mm

VGA max length: 420mm

PSU max length: 220mm
